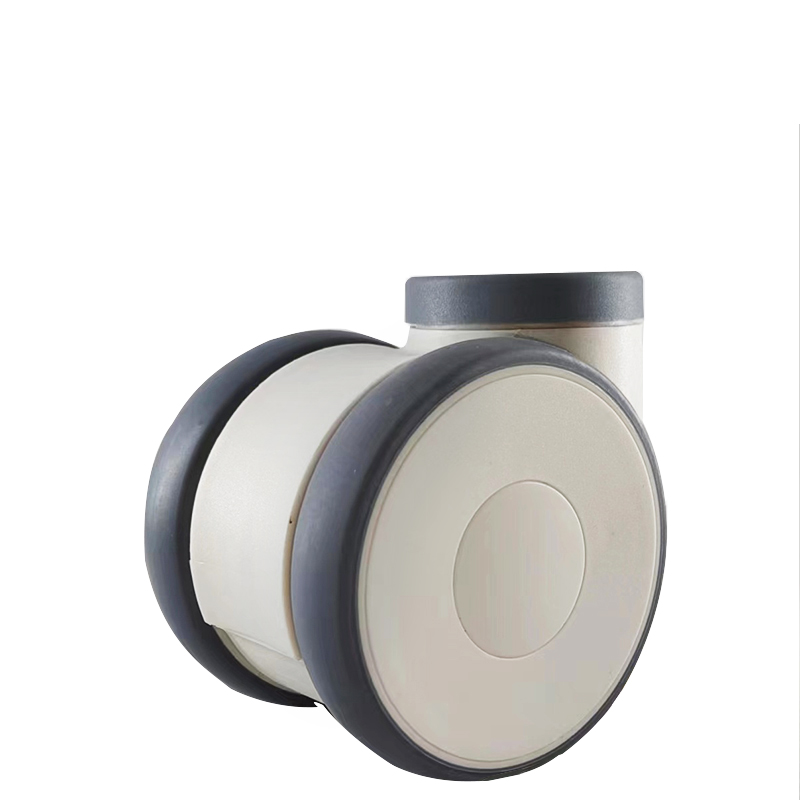

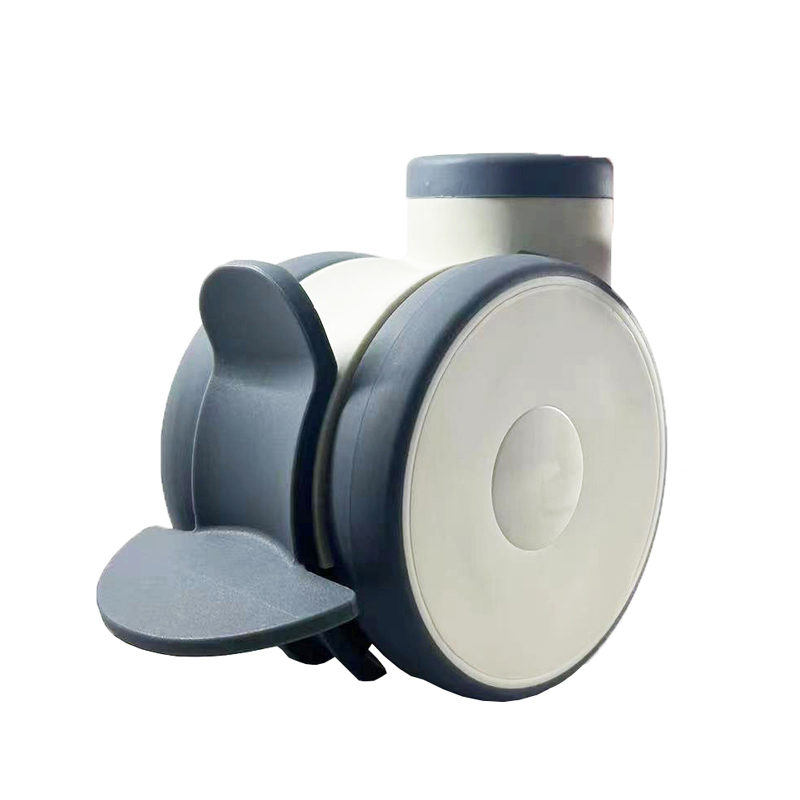

D Type Medical Caster - Kingstrong Caster

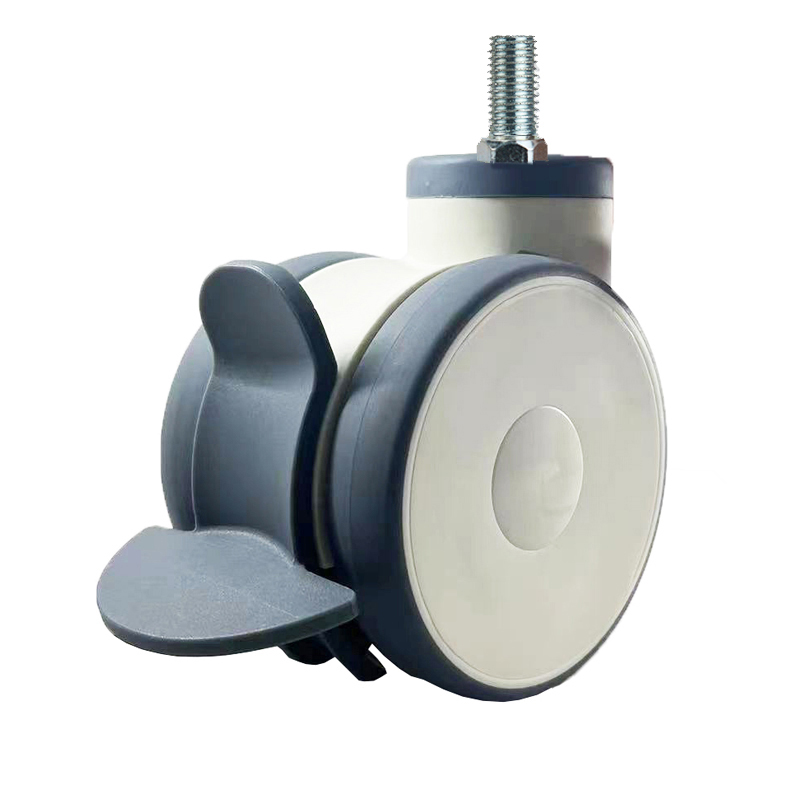

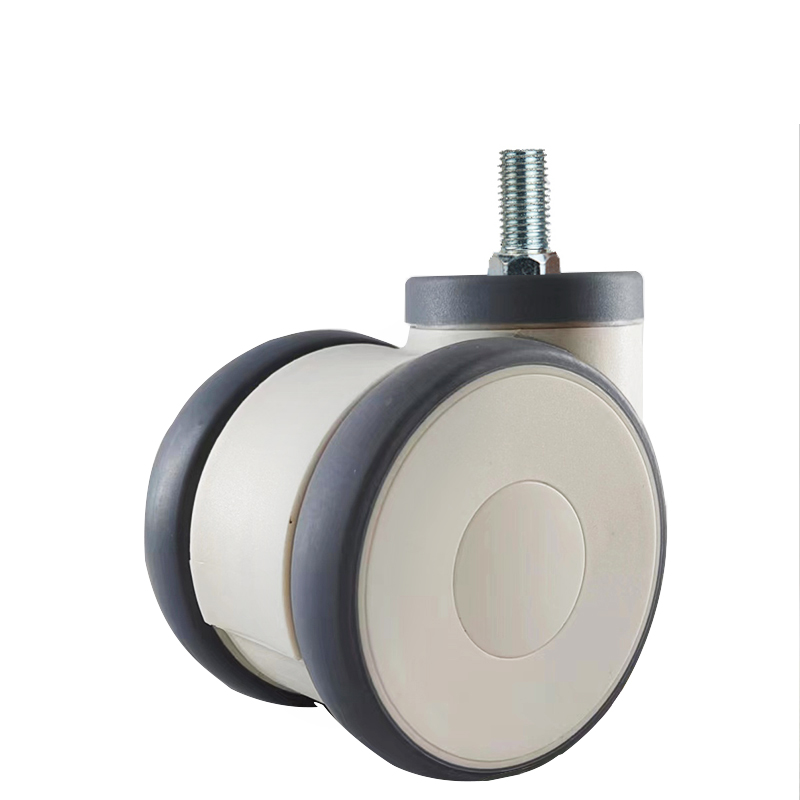

Screw Rod - D Type Medical Caster

Wheel Diameter	Wheel Width	Load height	Screw Rod Diameter	Load Capacity	Wheel Material
65 MM	52 MM	83.5 MM	M10 *20 MM	45 KGS	TPR
75 MM	63.4 MM	95.5 MM	M1220 MM/ M1025 MM	70 KGS	TPR
100 MM	82.5 MM	134.8 MM	M12*25 MM	100 KGS	TPR
125 MM	83.5 MM	154.5 MM	M12*25 MM	125 KGS	TPR

Bolt Hole - D Type Medical Caster

Wheel Diameter	Wheel Width	Load height	Blot Hole	Load Capacity	Wheel Material
75 MM	63.4 MM	95.5 MM	12.5 MM	70 KGS	TPR
100 MM	82.5 MM	134.8 MM	12.5 MM	100 KGS	TPR
125 MM	83.5 MM	154.5 MM	12.5 MM	125 KGS	TPR

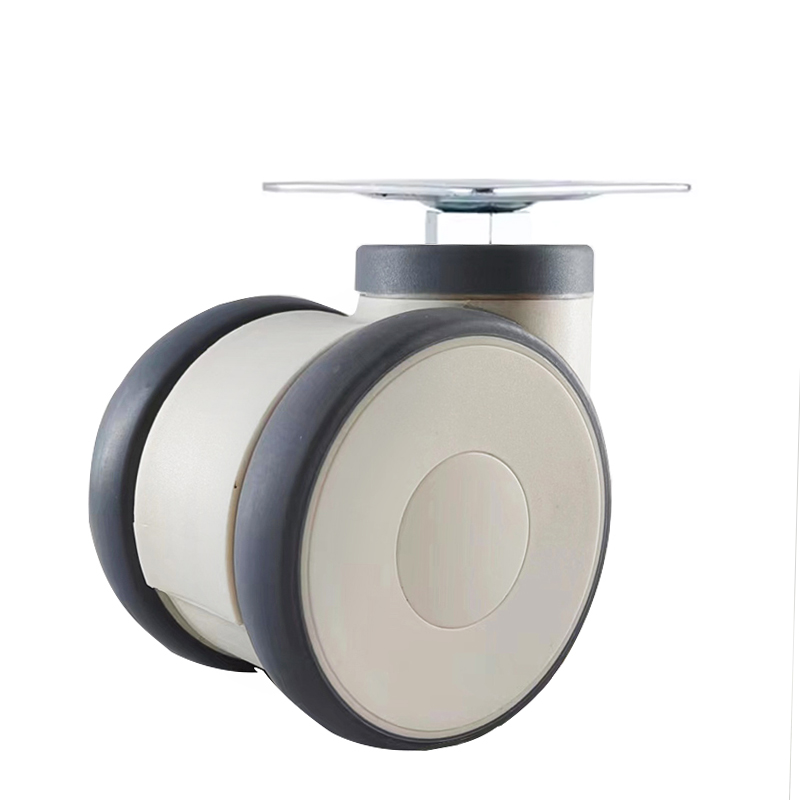

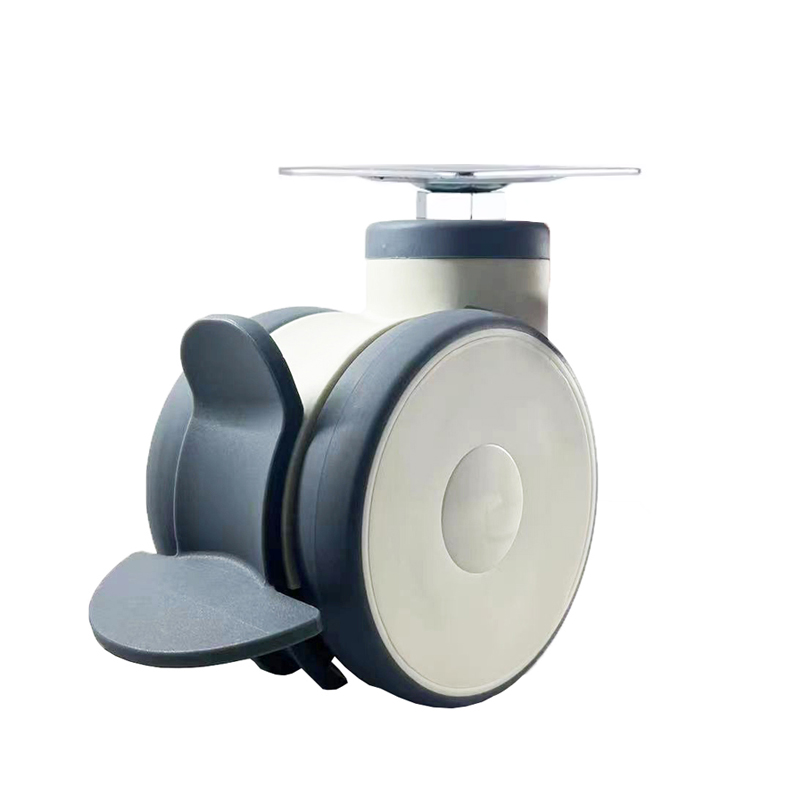

Top Plate - D Type Medical Caster

Wheel Diameter	Wheel Width	Load height	Plate Size	Hole distance	Load Capacity	Wheel Material
65 MM	52 MM	83.5 MM	70*58 MM	54*42 MM	45 KGS	TPR
75 MM	63.4 MM	95.5 MM	70*58 MM	54*42 MM	70 KGS	TPR
100 MM	82.5 MM	134.8 MM	96*63 MM	74.45.5 MM	100 KGS	TPR
125 MM	83.5 MM	154.5 MM	96*63 MM	74.45.5 MM	125 KGS	TPR
