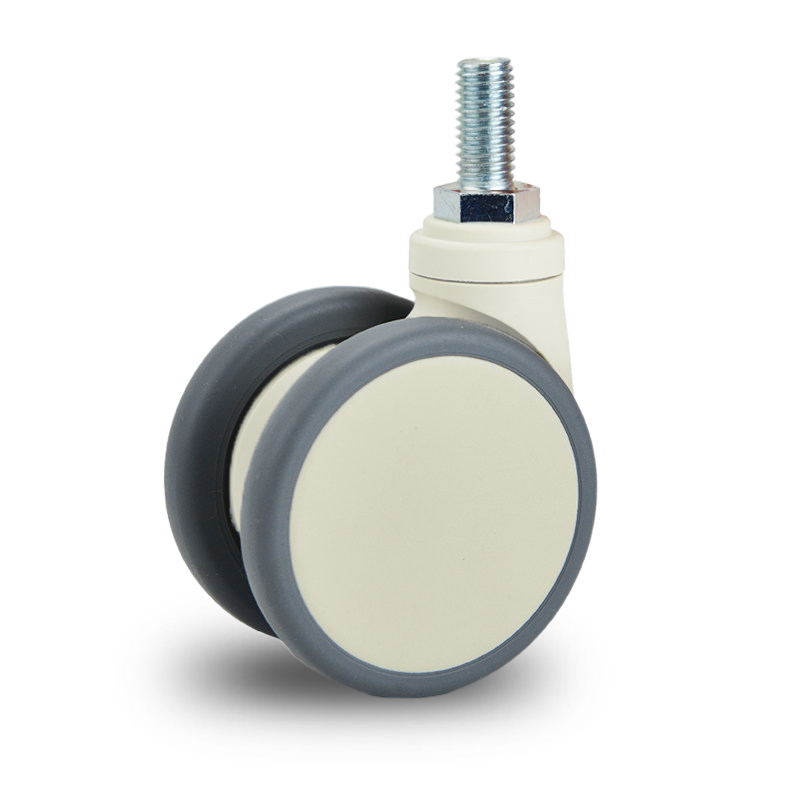

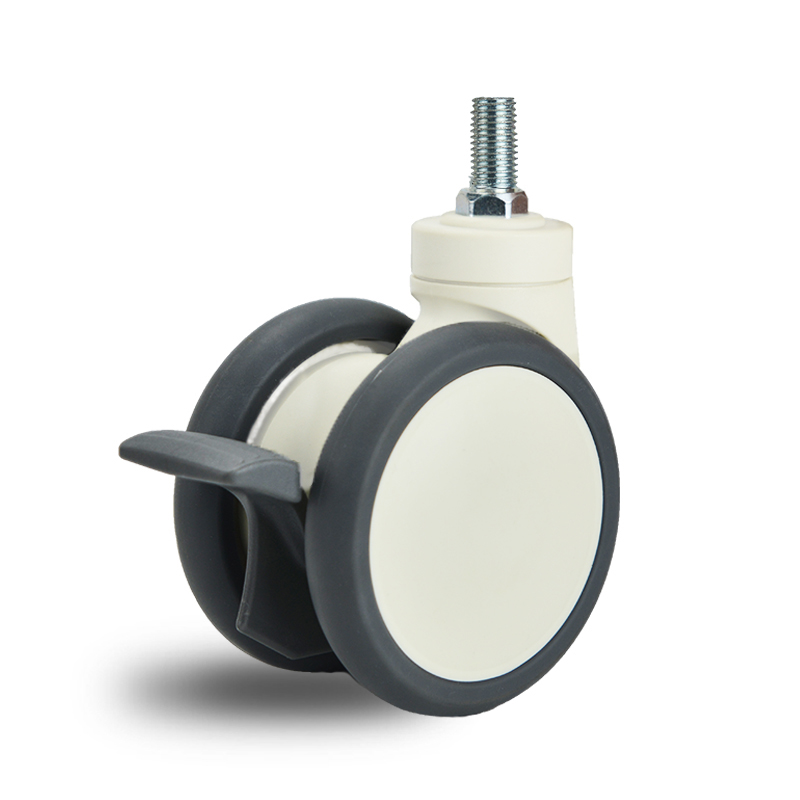

Screw Rod - B Type Medical Caster
Wheel Diameter
|
Wheel Width
|
Load height
|
Scree Rod Diameter
|
Load Capacity
|
Wheel Material
|
75 MM | 58 MM | 95 MM | M12*25 MM | 60 KGS | TPR |
|---|---|---|---|---|---|
| 100 MM | 70 MM | 129 MM | M12*25 MM | 80 KGS | TPR |
| 125 MM | 80 MM | 157 MM | M12*25 MM | 100 KGS | TPR |

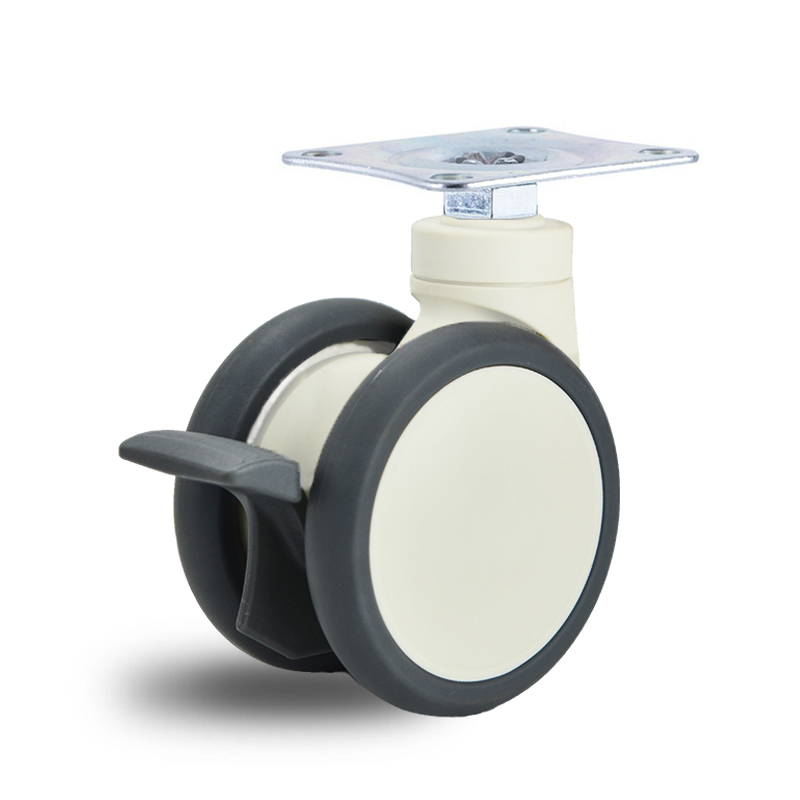

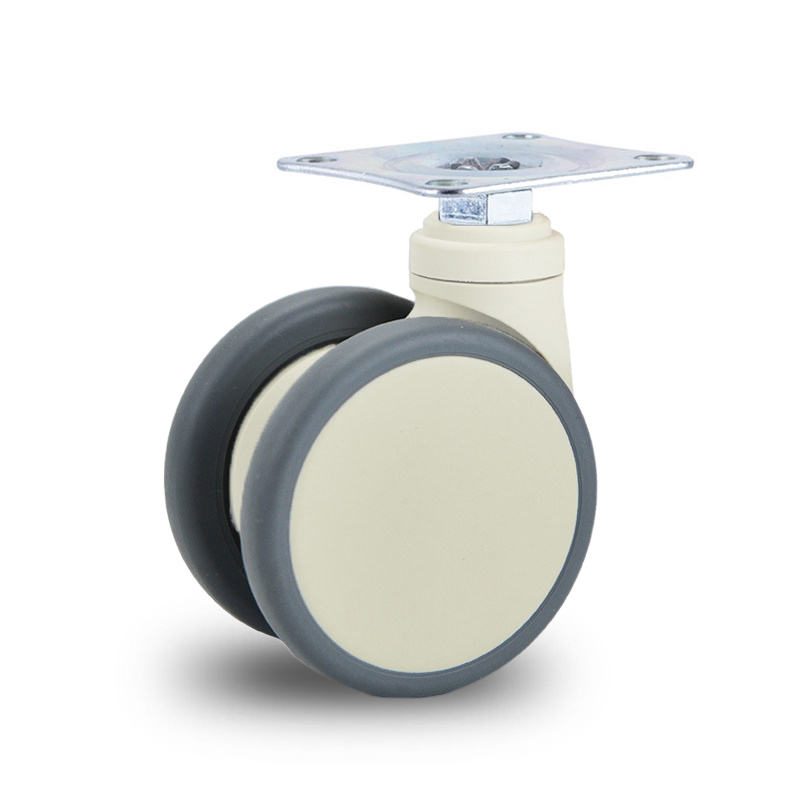

Top Plate - B Type Medical Caster
|
Wheel Diameter
|
Wheel Width
|
Load height
|
Plate Size
|
Blot Hole
|
Load Capacity
|
Wheel Material
|
75 MM | 58 MM | 95 MM | 70*58 MM | 54*43 MM | 60 KGS | TPR |
|---|---|---|---|---|---|---|
| 100 MM | 70 MM | 129 MM | 80*64 mm | 55*43 MM | 80 KGS | TPR |
| 125 MM | 80 MM | 157 MM | 96*63 mm | 75*45.5 MM | 100 KGS | TPR |
