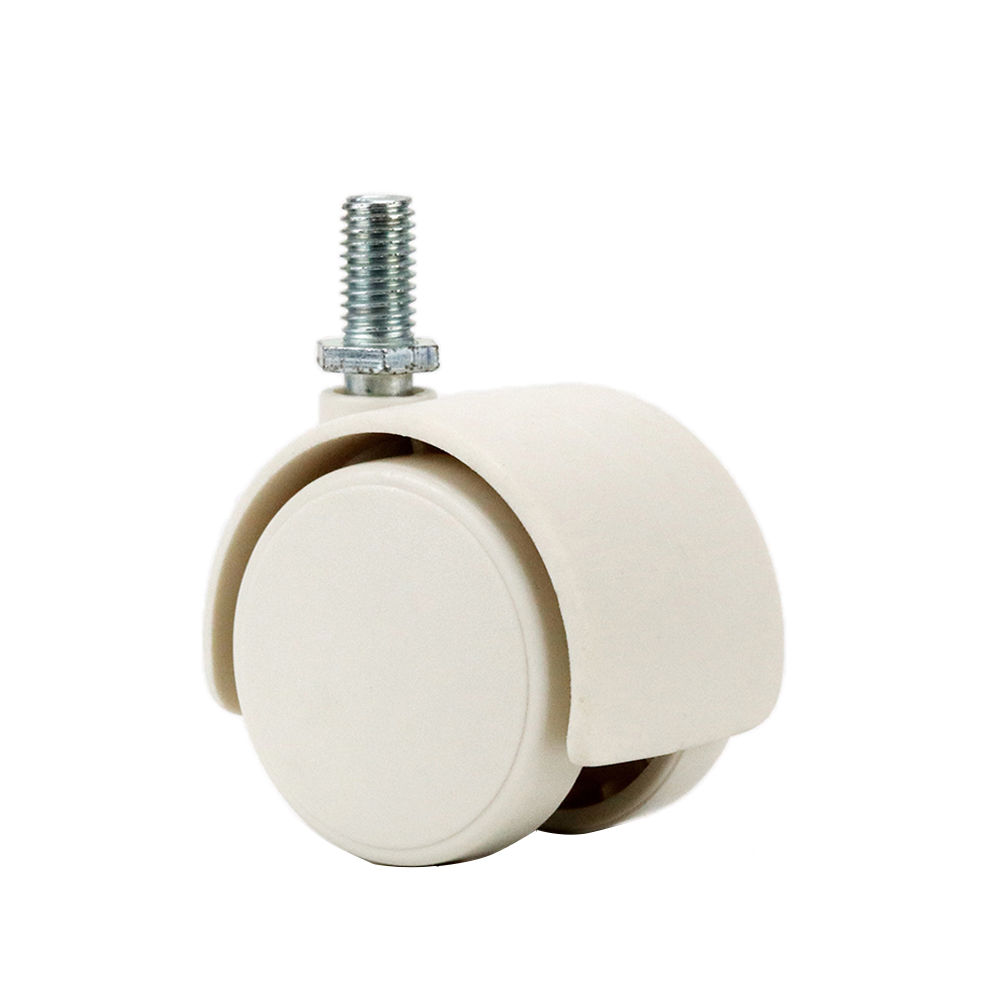

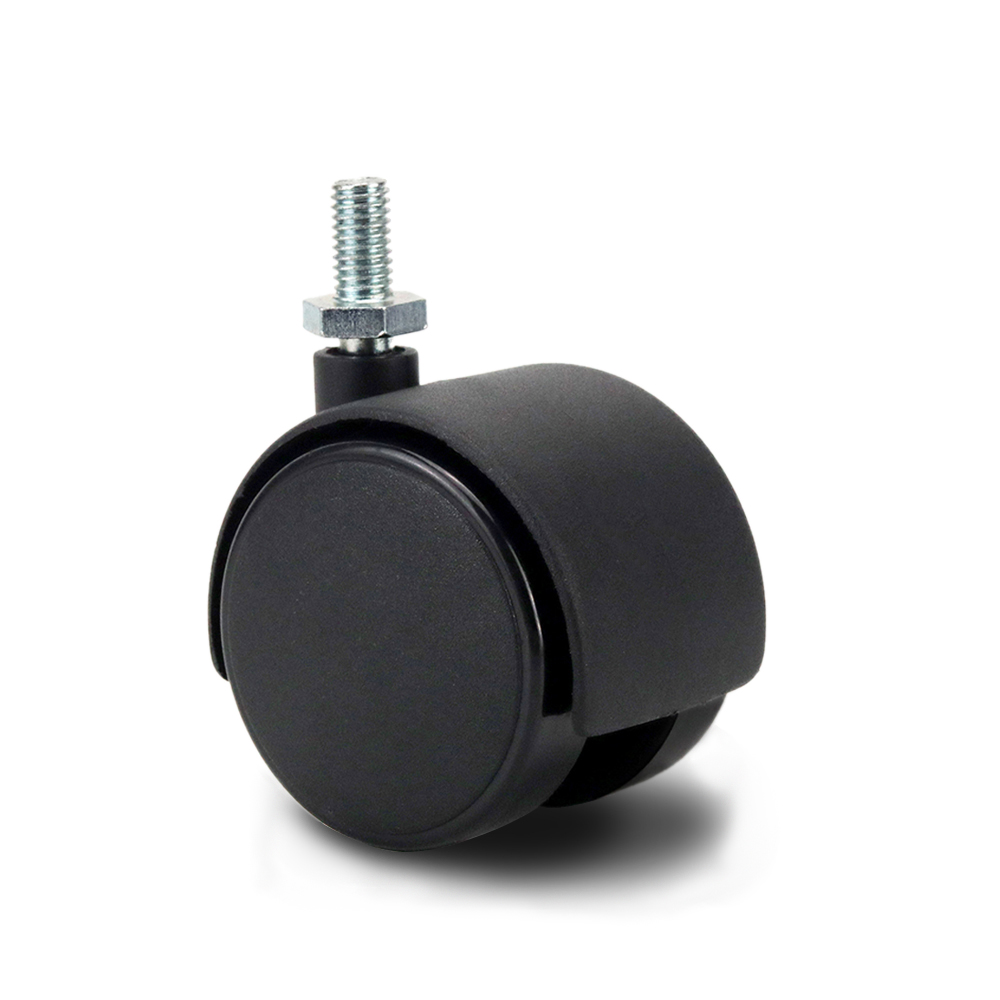

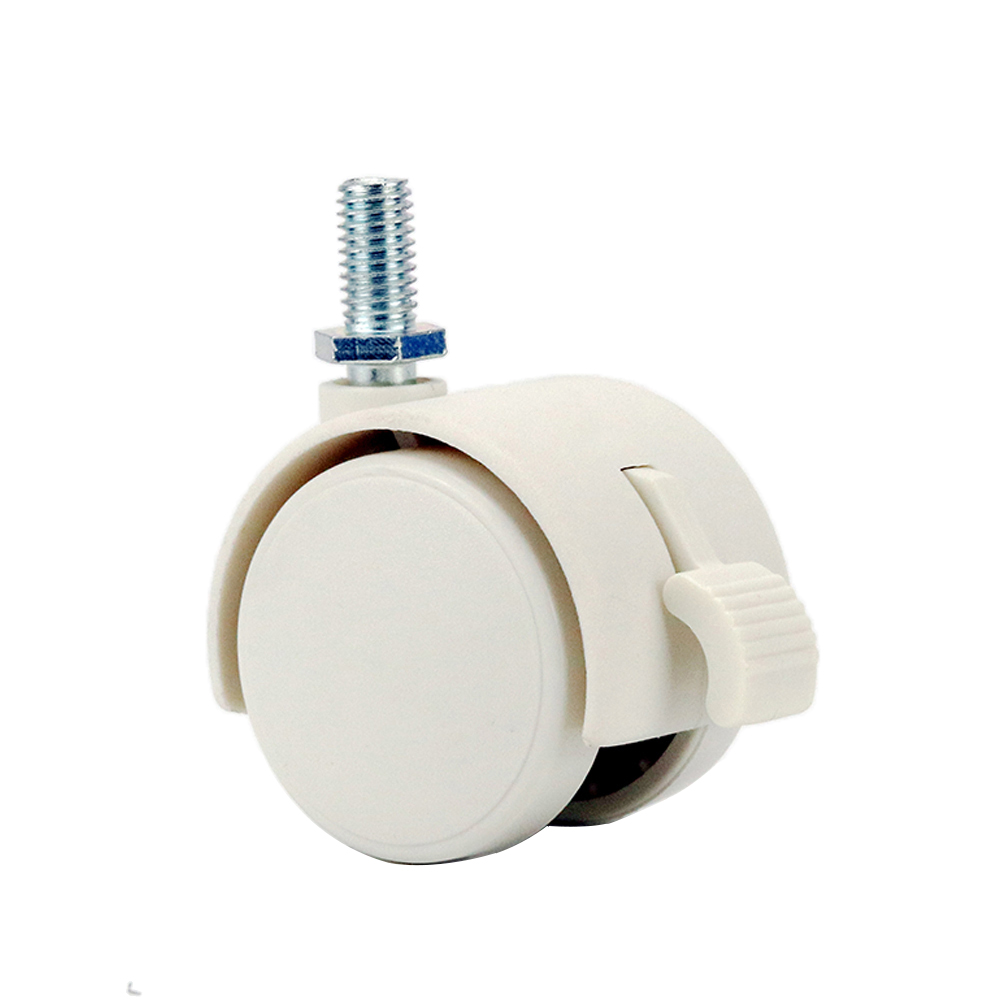

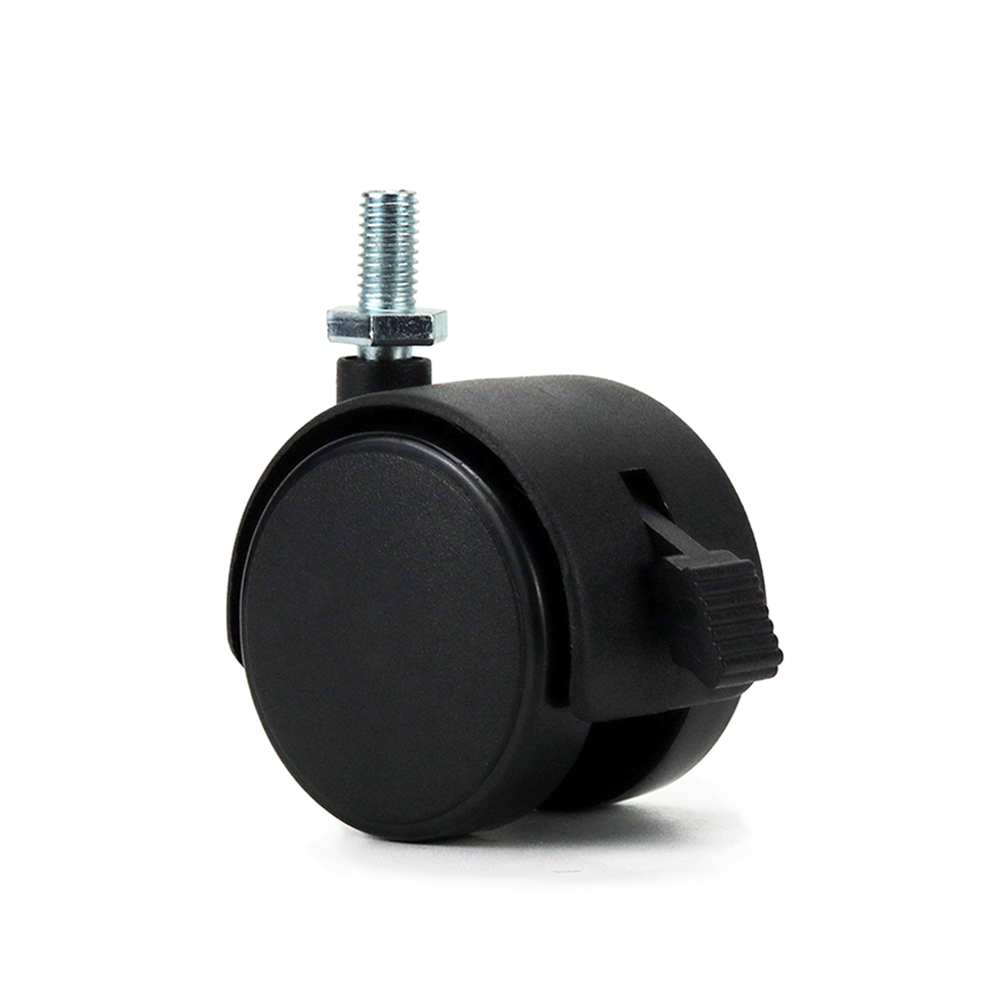

Screw Rod - D Type Furniture Caster

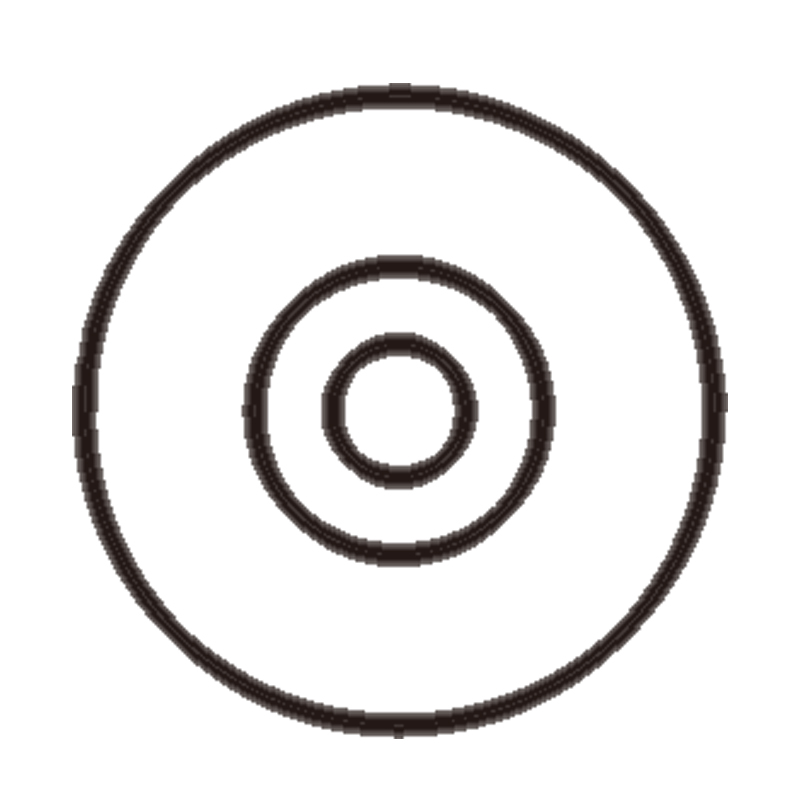

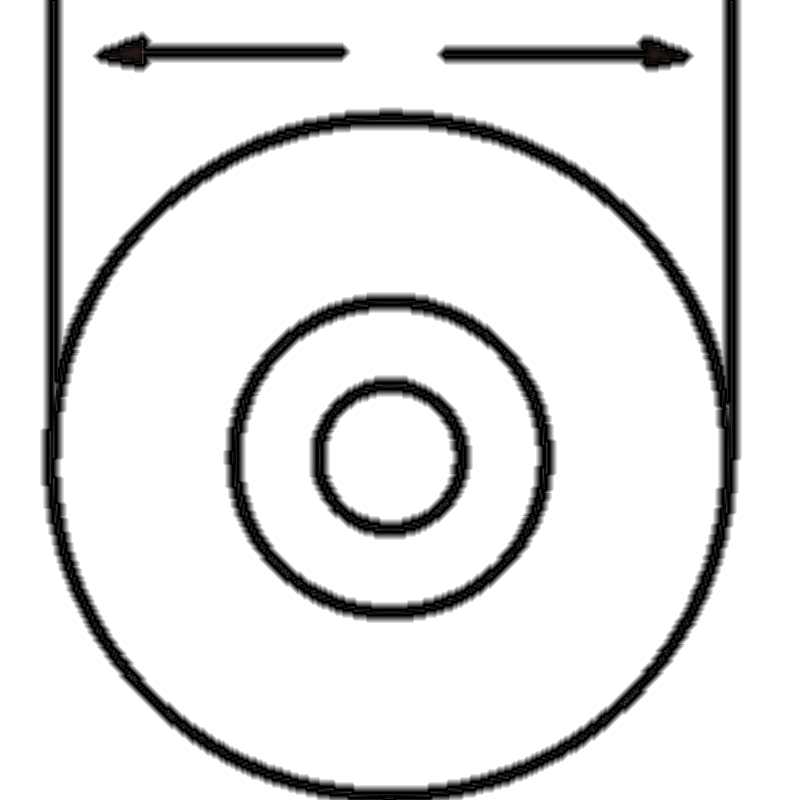

Wheel Diameter
|

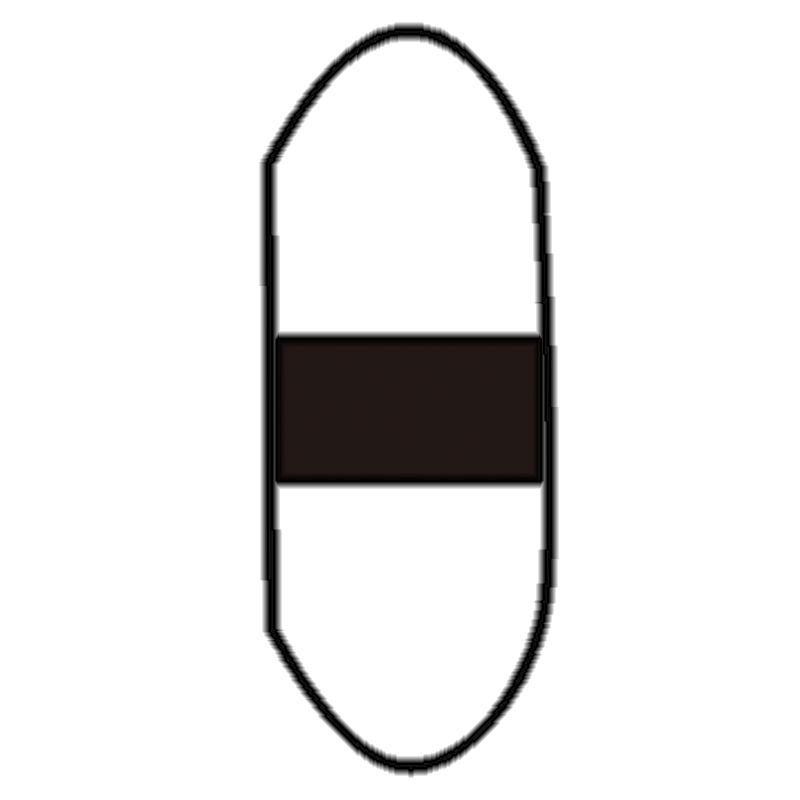

Wheel Width
|

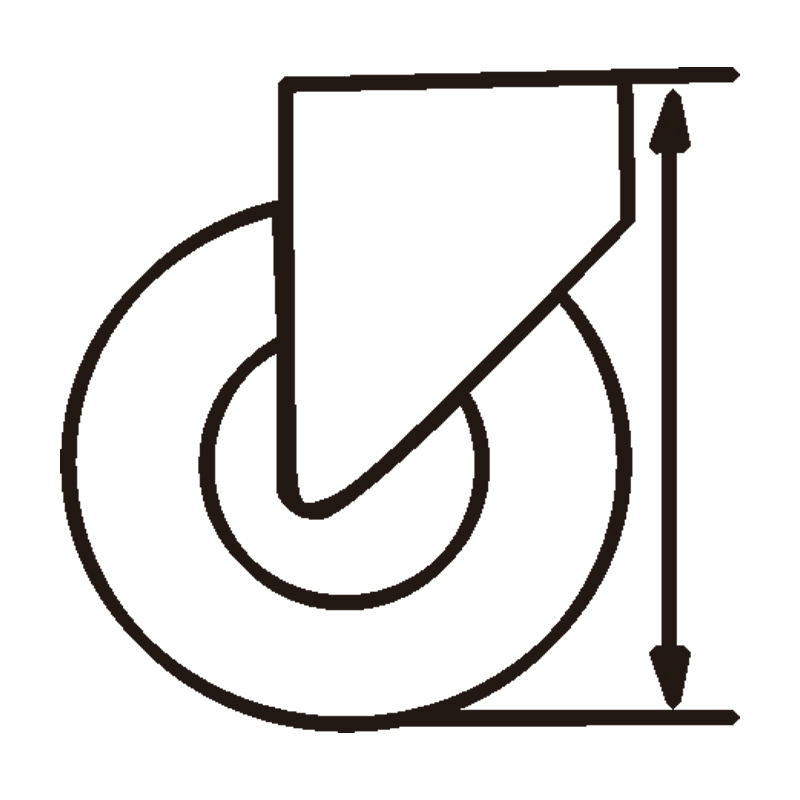

Load height
|

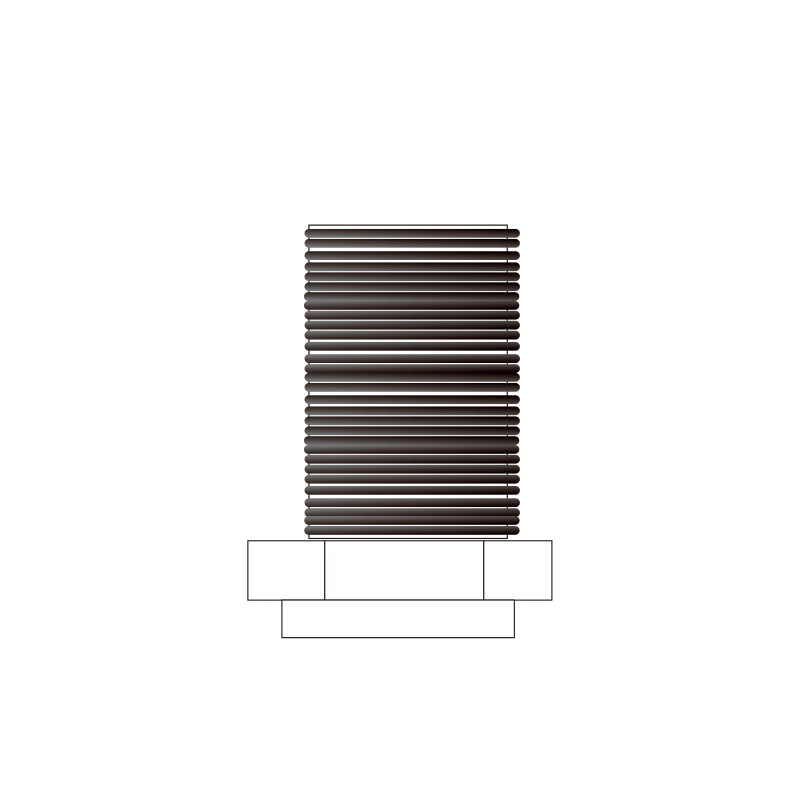

Screw Rod Diameter
|

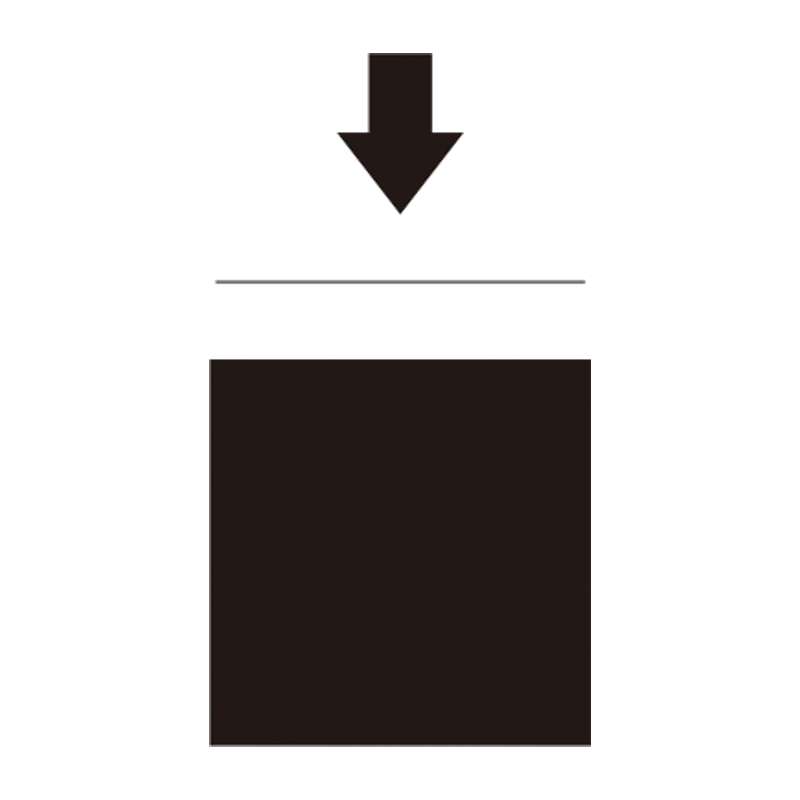

Load Capacity
|
Wheel Material
|
40 MM | 39.5 MM | 56 MM | M8*15 MM | 20 KGS | PA/PP |
|---|---|---|---|---|---|
| 50 MM | 45 MM | 68 MM | M8*15 MM | 30 KGS | PA/PP |

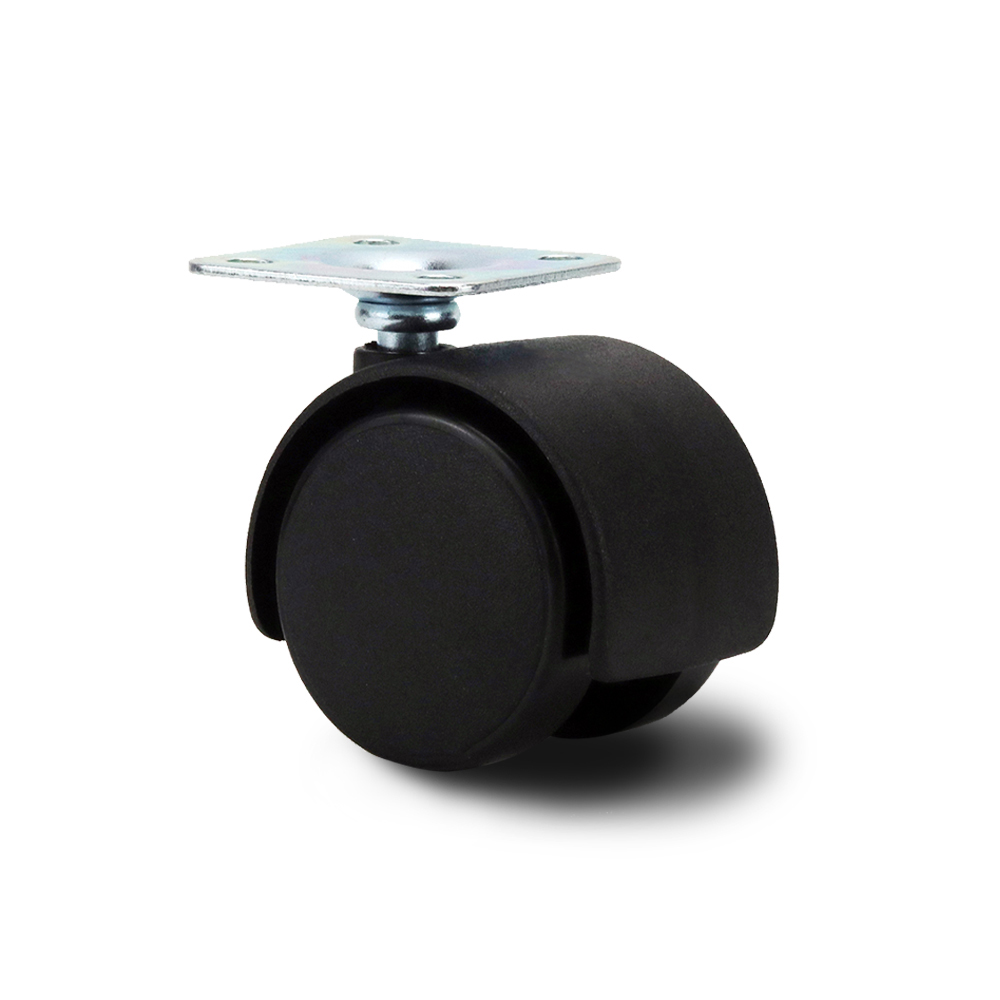

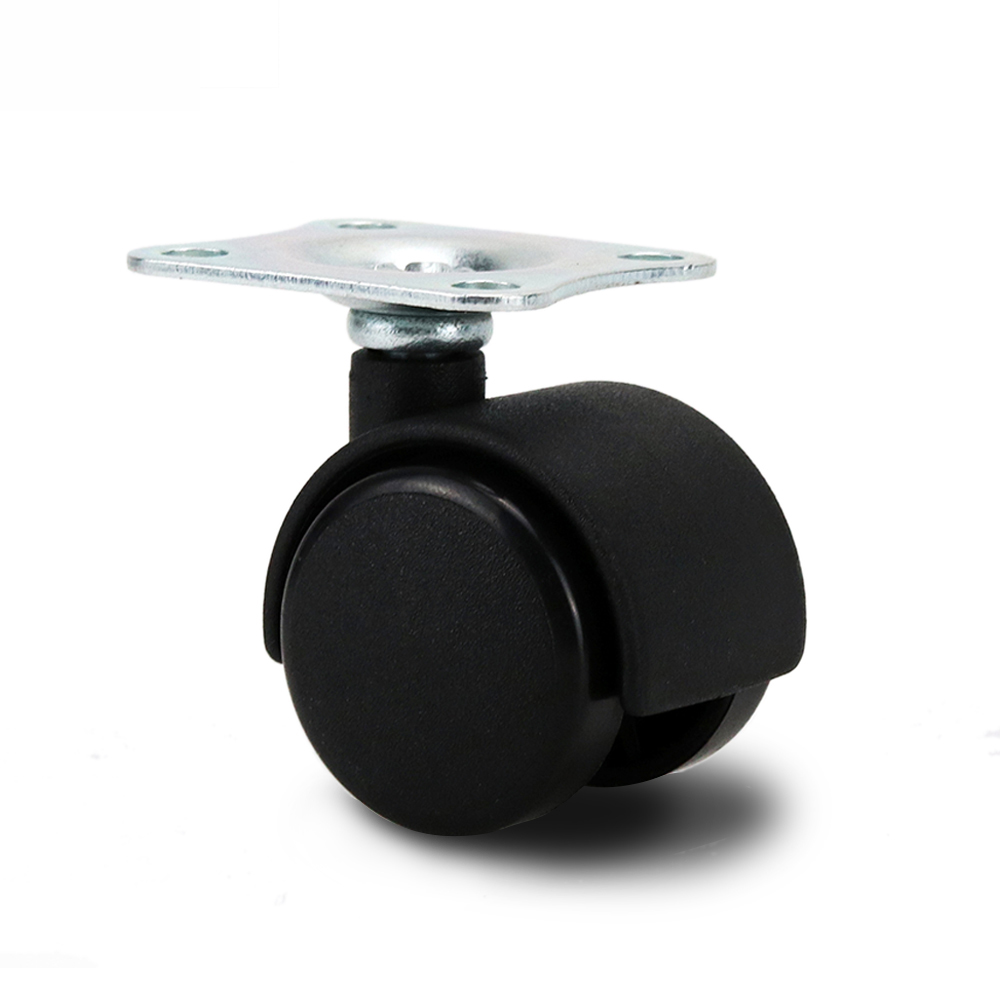

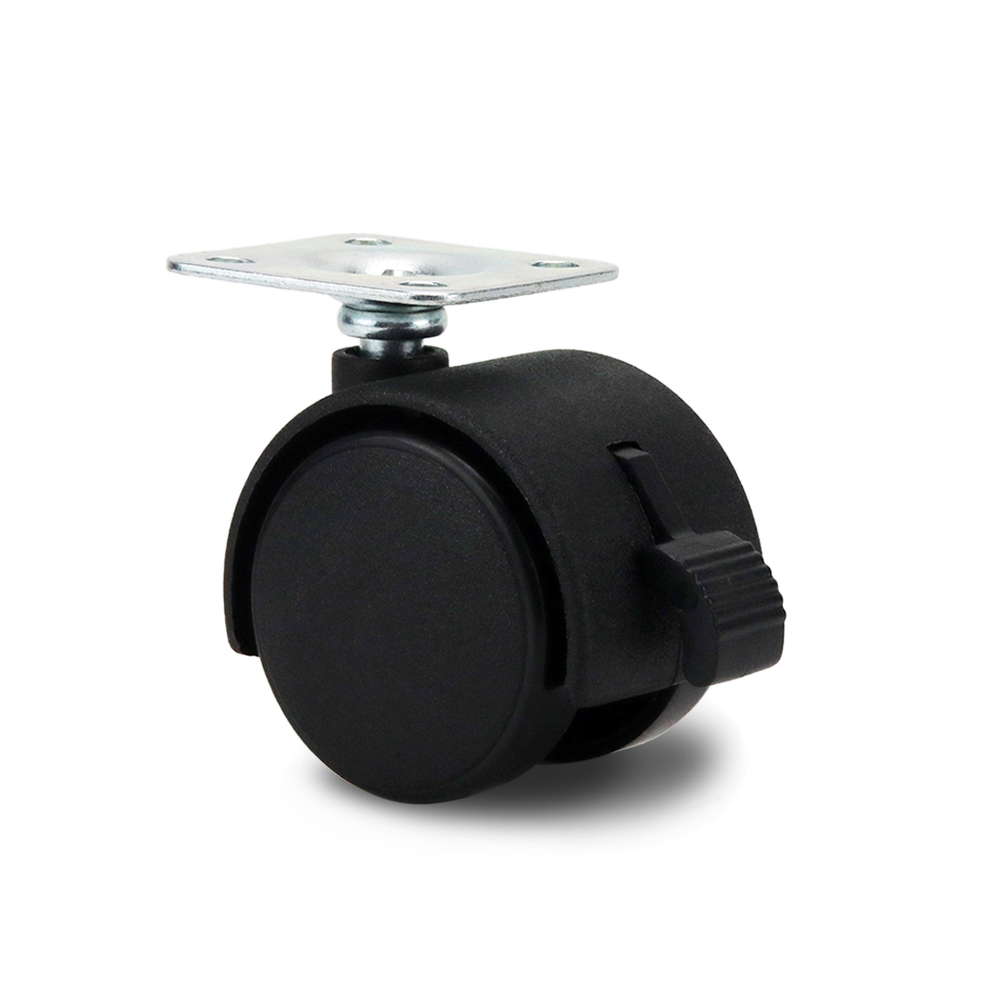

Top Plate - D Type Furniture Caster
|
Wheel Diameter
|
Wheel Width
|
Load height
|

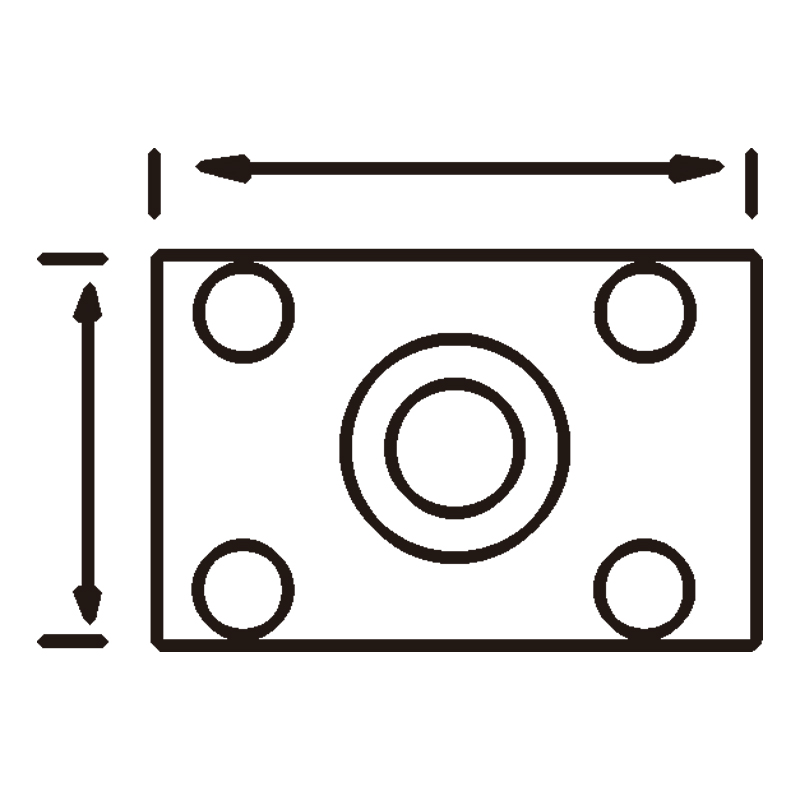

Plate Size
|

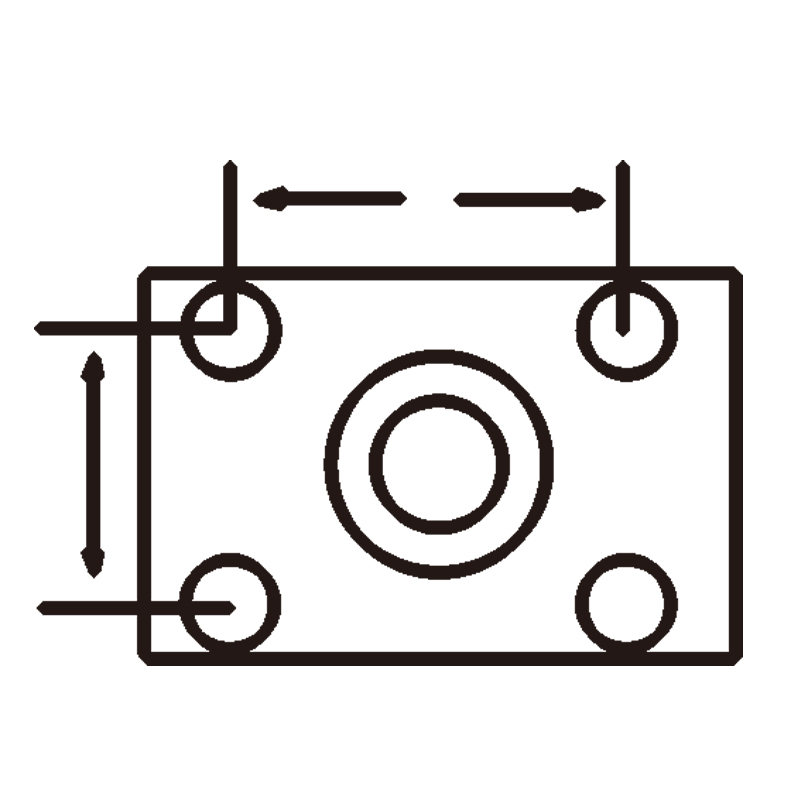

Hole Distance
|
Load Capacity
|
Wheel Material
|
30 MM | 34 MM | 45 MM | 34.5*34.5 MM | 25*25 MM | 20 KGS | PA |
|---|---|---|---|---|---|---|
| 40 MM | 39.5 MM | 56 MM | 38*38 MM | 25*25 MM | 20 KGS | PA/PP |
| 50 MM | 45 MM | 68 MM | 38*38 MM | 25*25 MM | 30 KGS | PA/PP |
